Model 645

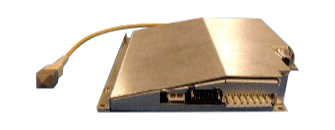

The Model 645 Fiber Optic Measurement Assembly (FOMA) is designed to support RJC Fiber Optic Pressure Sensors. This FOMA becomes a sub-assembly in the customers' instrument, has a protective aluminum enclosure, and uses customer supplied power and display capabilities.
  • Dimensions: 6 x 6 in; less than 1.1 inch high
    (other layouts available)
  • Operating temperature range: 15 to 40°C
  • Sensor calibration data: Datakey or RFID
  • Outputs: RS232 & USB (analog optional)
  • Output frequency response: DC to 100 Hz
    @ 1000 samples/second (extended available)
  • Power required: 12 VDC @ 100 mA
    (2.5 amp startup)

(Released 2010)
Model 650

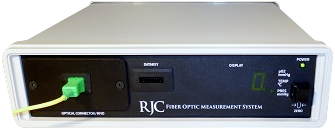

The Model 650 Fiber Optic Measurement System (FOMS) is a stand alone instrument designed to support RJC Fiber Optic Pressure Sensors. This FOMS contains the Model 645 FOMA, a dedicated power supply, and a display.
  • Dimensions: 10 x 10 x 2.75 inches
  • Operating temperature range: 15 to 35°C
  • Display: 4 digit LED
  • Sensor calibration data: Datakey or RFID
  • Outputs: USB
  • Output frequency response: DC to 100 Hz
    @ 1000 samples/second (extended available)
  • Power required: 110/220 VAC, 50/60 Hz

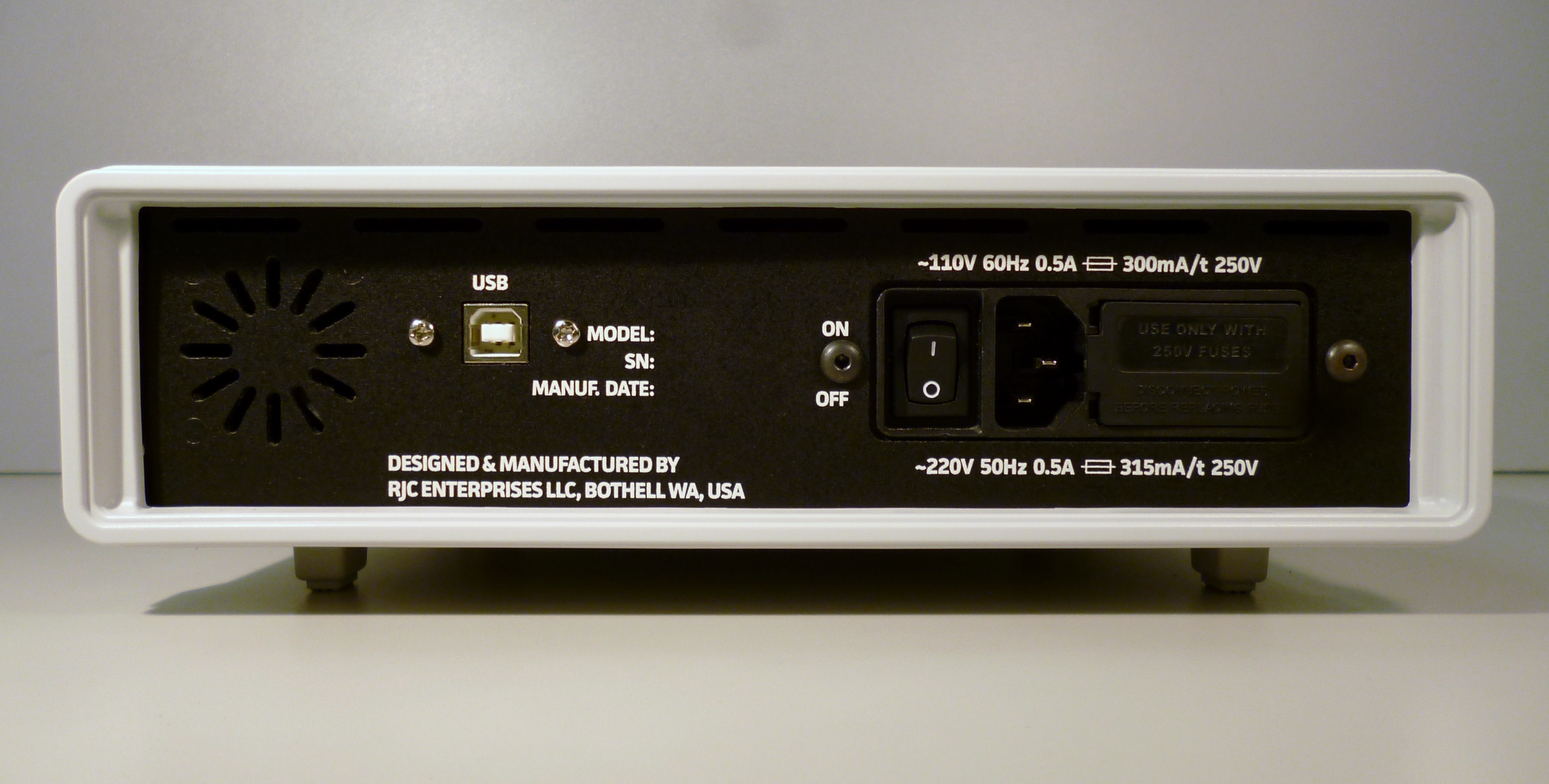

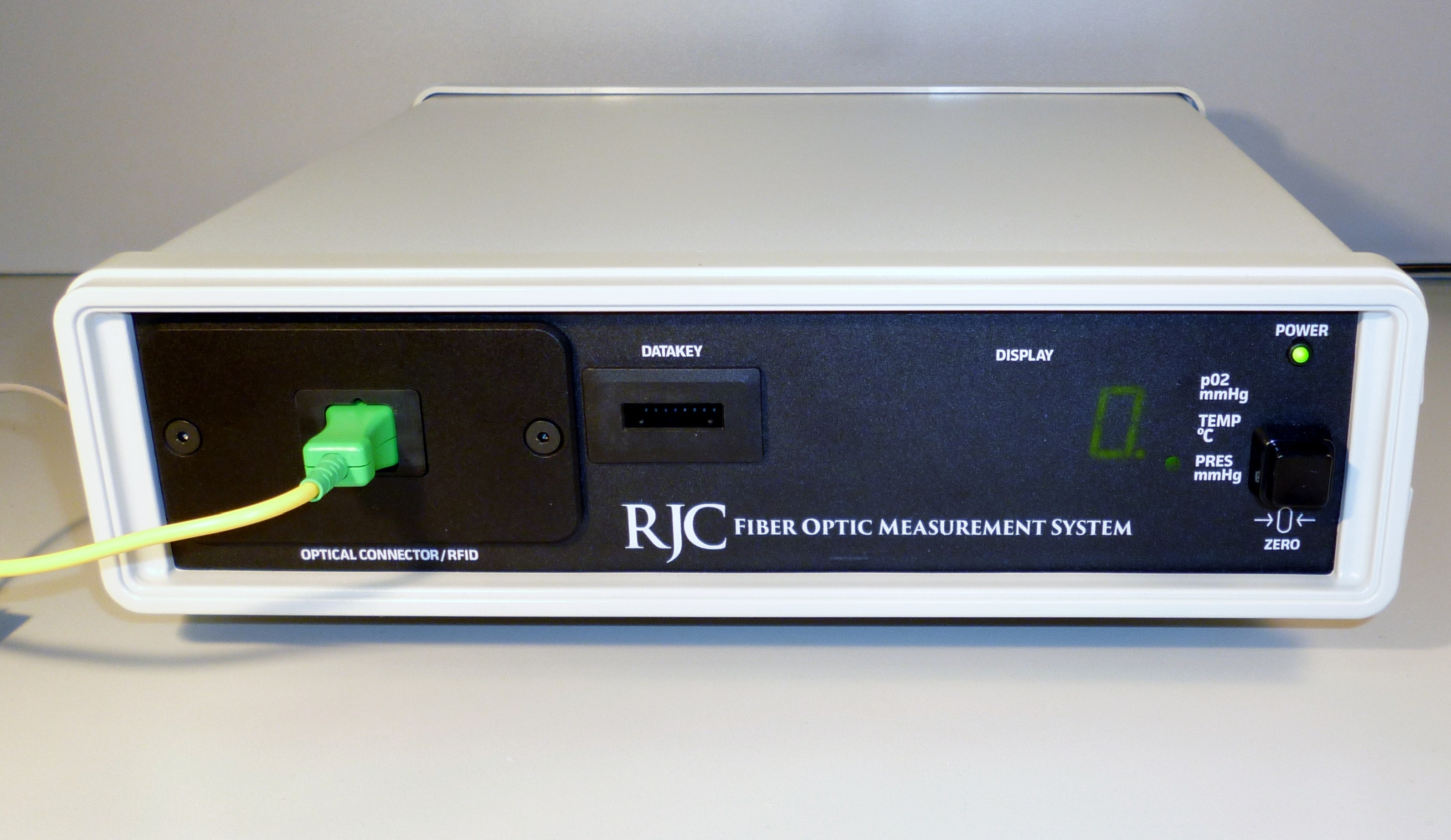

[Front] [Back]
(Released 2016)
