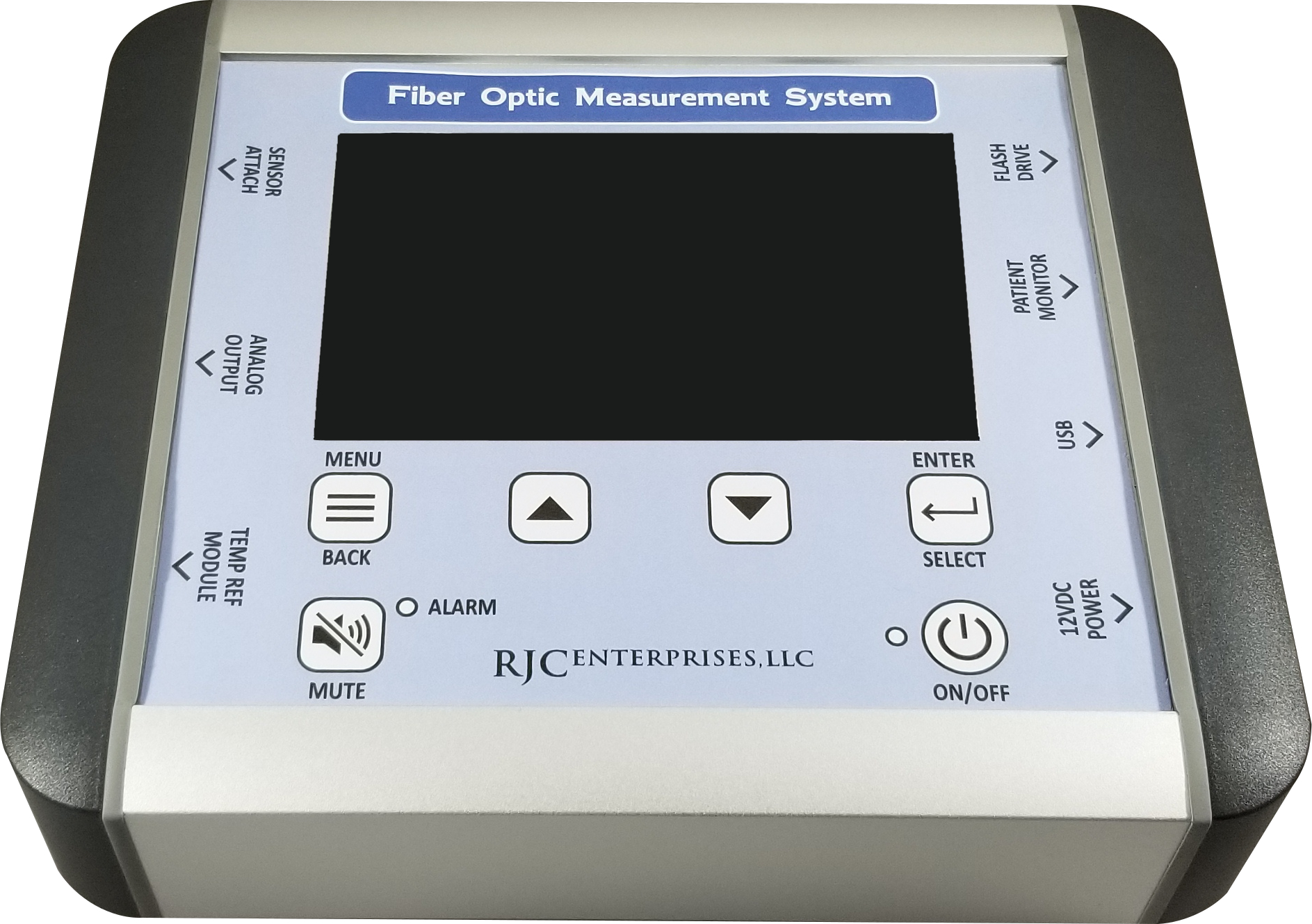

The Model 621 Fiber Optic Measurement
System (FOMS) supports RJC Fiber Optic Temperature sensors. This FOMS has many applications,
including product development support, laboratory studies, production support, and clinical measurements (the customer must first
obtain regulatory approval). The Model 621 contains an optoelectronic circuit board assembly, a graphic color display,
alarm functions, and other related features:
- Dimensions: 8”W x 6.75”H x 2”D without stand; 3.5”D with stand. Pole mount is available
- Operating temperature range: 15 to 35°C
- Display: Graphic color LCD 5” diagonal, 800x480 pixels
- Sensor calibration data: RFID
- TRM: Temperature Reference Module port for adjusting temperature sensor offset.
- Outputs: Simulated Thermistor, High Level Analog Output (100mv/°C), USB, Thumb Drive Data Logging, Patient Monitor Interface
- Output frequency response: DC to 100Hz @ 1,000 samples/second
