Temperature Sensor Assemblies
Sensor Assembly Features
Continuous temperature measurements!
Small size (for demanding catheter/guide wire applications)
Excellent performance (outperforms the competition)
Immune to electromagnetic noise (cautery, MRI, RF, etc.)
Meets the accuracy requirements of ISO 80601-2-56
Sensor and fiber available enclosed in a polyimide sheath
Sensor Assembly Dimensions

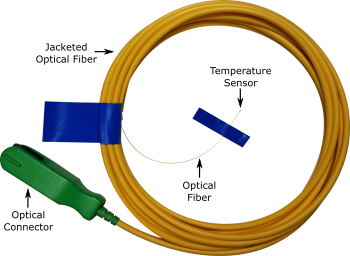

Model 120
Capillary Pedestal, OD
0.33 mm (1.0 F)
or 0.51 mm (1.5 F)
Capillary Pedestal, Length
Customer Specified
Optical Sensor, Length
0.05 mm
Optical Fiber, OD
0.17 mm
Sensor Performance Characteristics
Rated temperature range: 34 to 43°C (Extended 15 to 50°C)
Resolution: 0.01°C
Accuracy in rated range: +/-0.1°C
Response to a step change in liquid: < 1 second
