Temperature Sensor Instrumentation
The RJC Model 520 assembly is used with all RJC temperature sensor assemblies. This instrumentation sends specific wavelength light out to the sensor, the sensor modifies this light based on current sensed temperature, then reflects it back to the instrumentation. The instrumentation converts returned light to photocurrents, applies the sensor’s unique calibration information, and outputs a temperature measurement every second.
Model 520 FOMA
Fiber Optic Measurement Assembly

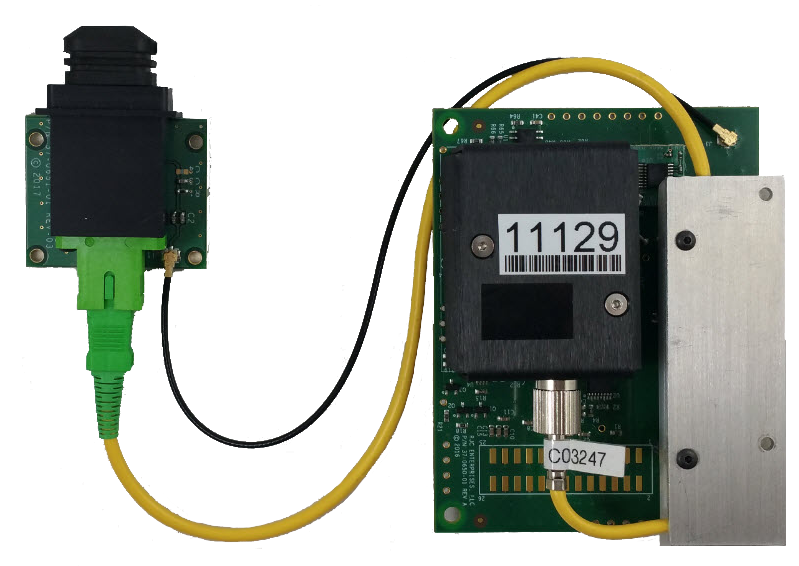

The Model 520 Fiber Optic Measurement Assembly (FOMA) is used where the customer already has an existing instrumentation package. In this case, the FOMA becomes a sub assembly in the customer’s medical device and requires customer-supplied power, controls, alarms, and sensor data outputs/displays. The Tethered Module contains a mating optical connector for the sensor, and an RFID antenna for reading sensor calibration information. The Tethered Module can be configured to meet customer needs.
- Dimensions:
- FOMA: 2.68 x 3.50 x 0.96 inches (excepting RS-232 level connector)
- Tethered Module: 1.50 x 1.33 x 0.81 inches (without sensor assembly)
- Operating temperature range: 15 to 38°C
- Sensor calibration data: RFID
- Output: Logic Level RS-232 (standard RS-232 level available)
- Output rate: 1 sample/second
- Power required: 12 VDC @ 185 mA at 23°C
(2.4 amp startup)

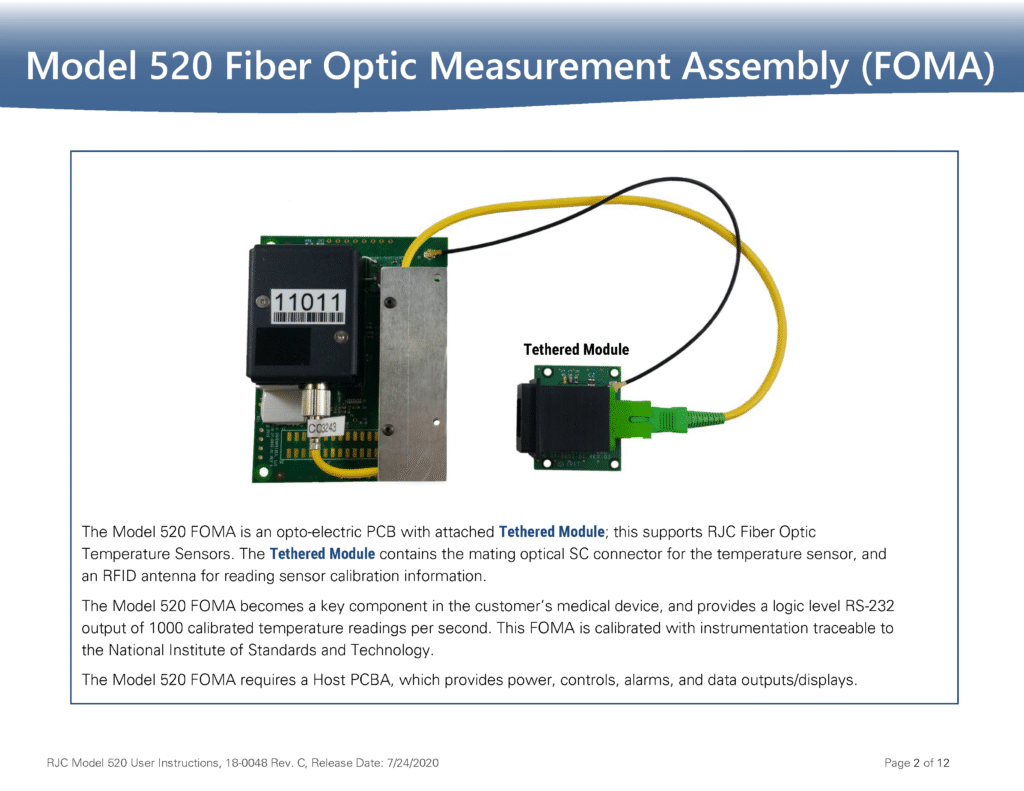

Model 520 User Instructions

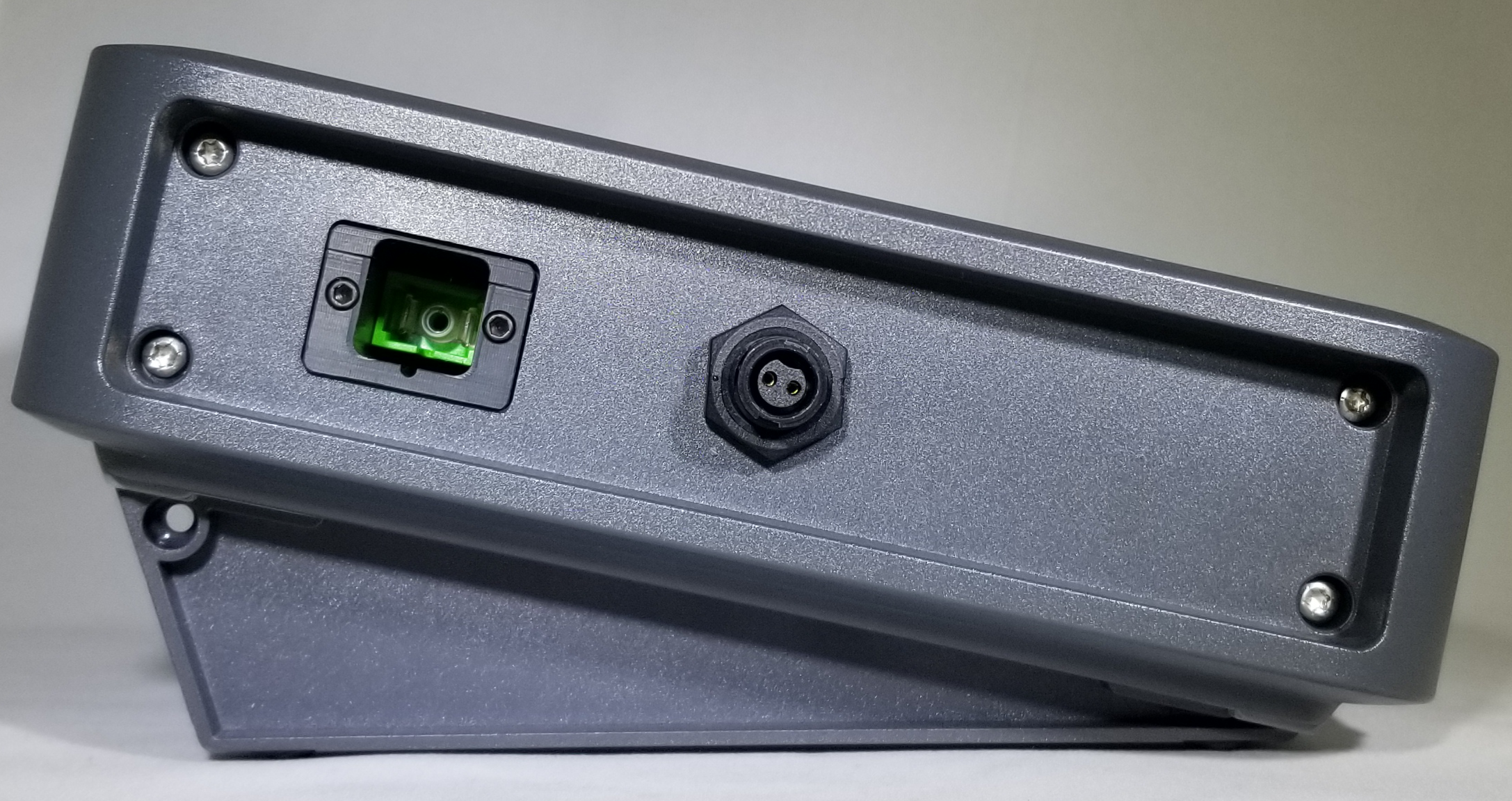

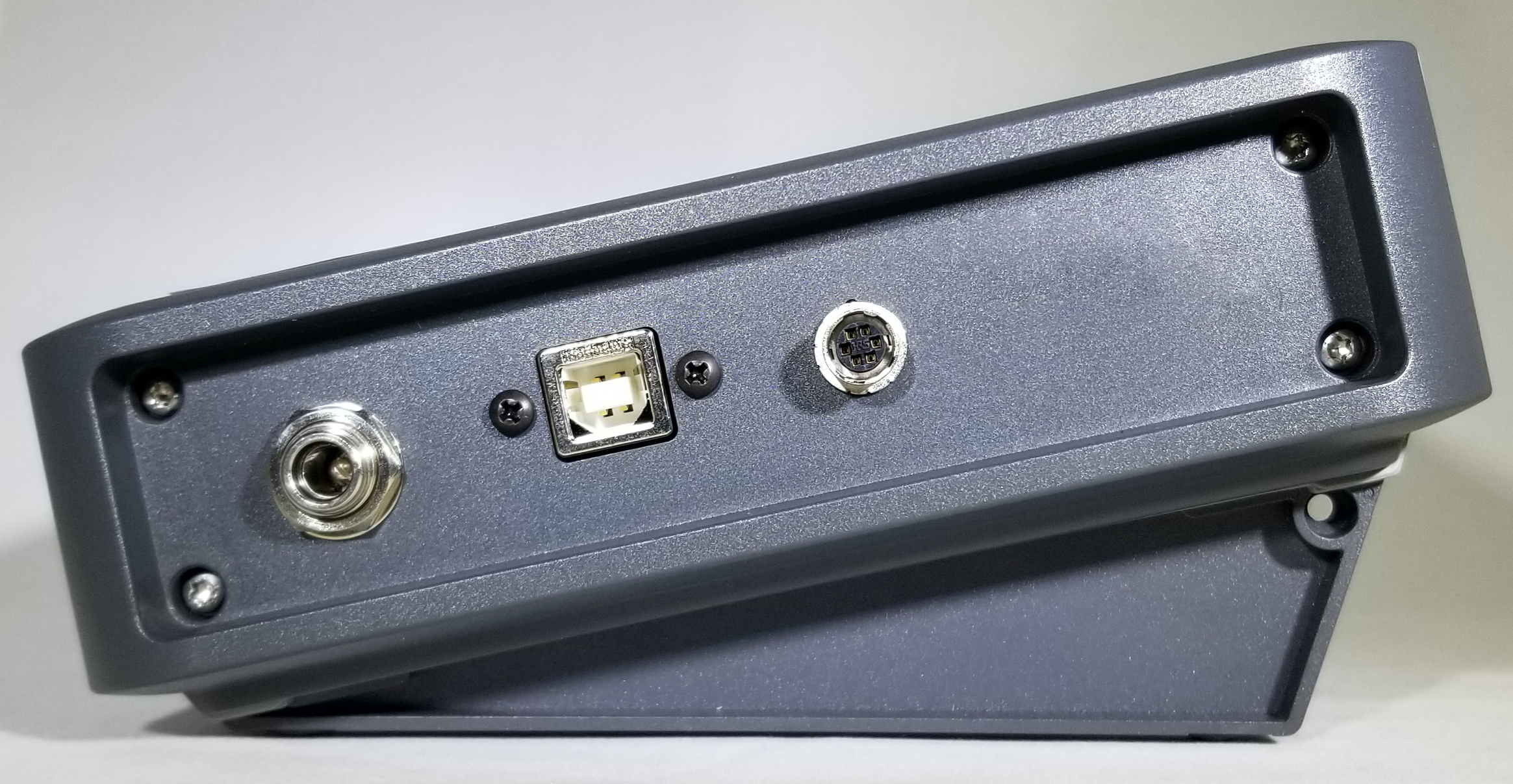

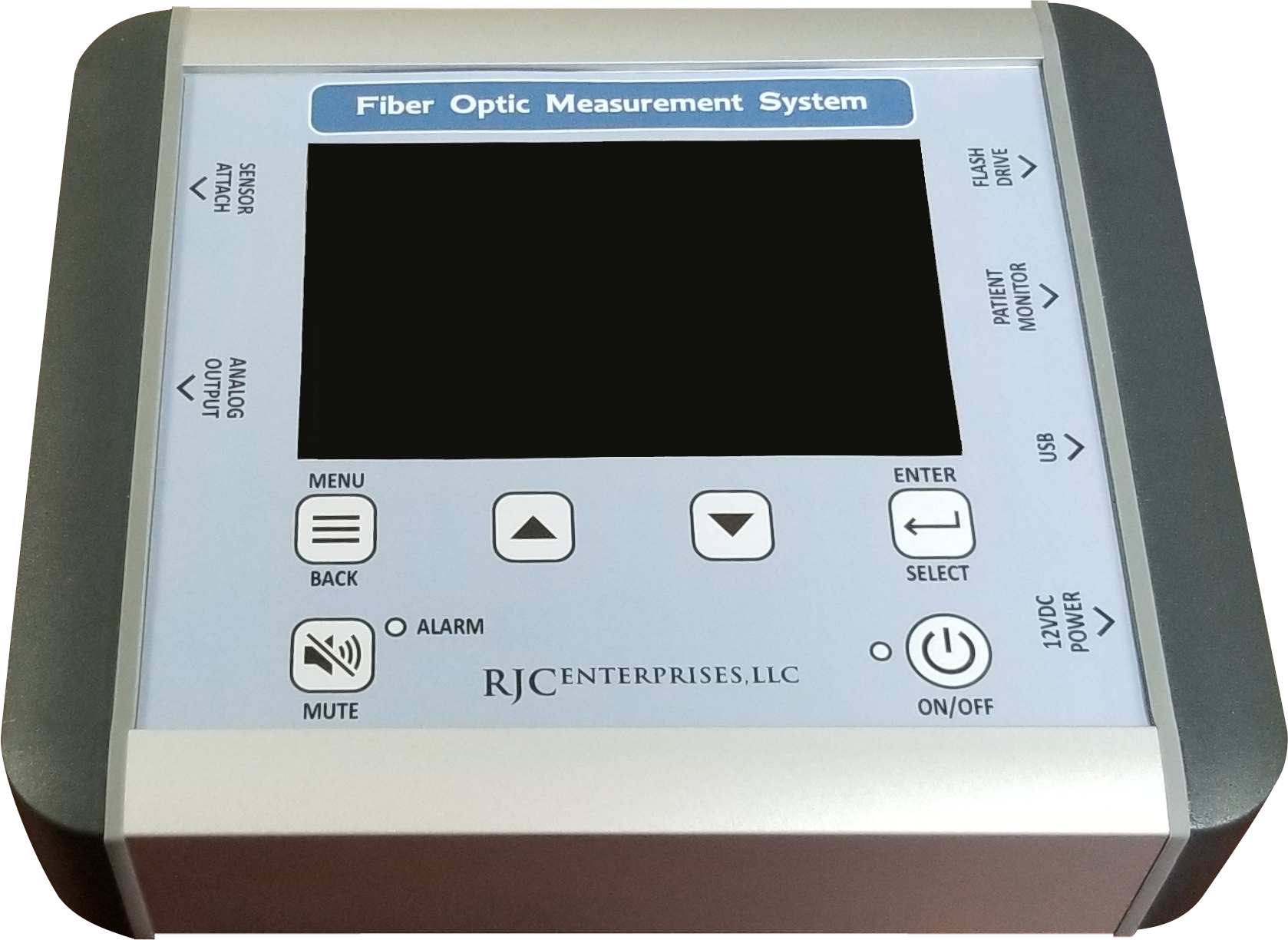

The Model 621 Fiber Optic Measurement Instrument (FOMI) contains a Model 520 FOMA and is used where the customer requires a stand alone instrument. The Model 621 contains a separate circuit board assembly that provides a power supply, graphic color display, alarm functions, and other related features. This FOMI has many applications, including product development support, laboratory studies, production support, and clinical measurements (the customer must first obtain regulatory approval).
- Dimensions: 8”W x 6.75”H x 2”D without stand; 3.5”D with stand. Pole mount is available.
- Operating temperature range: 15 to 35°C
- Display: Graphic color LCD 5” diagonal, 800×480 pixels
- Sensor calibration data: RFID

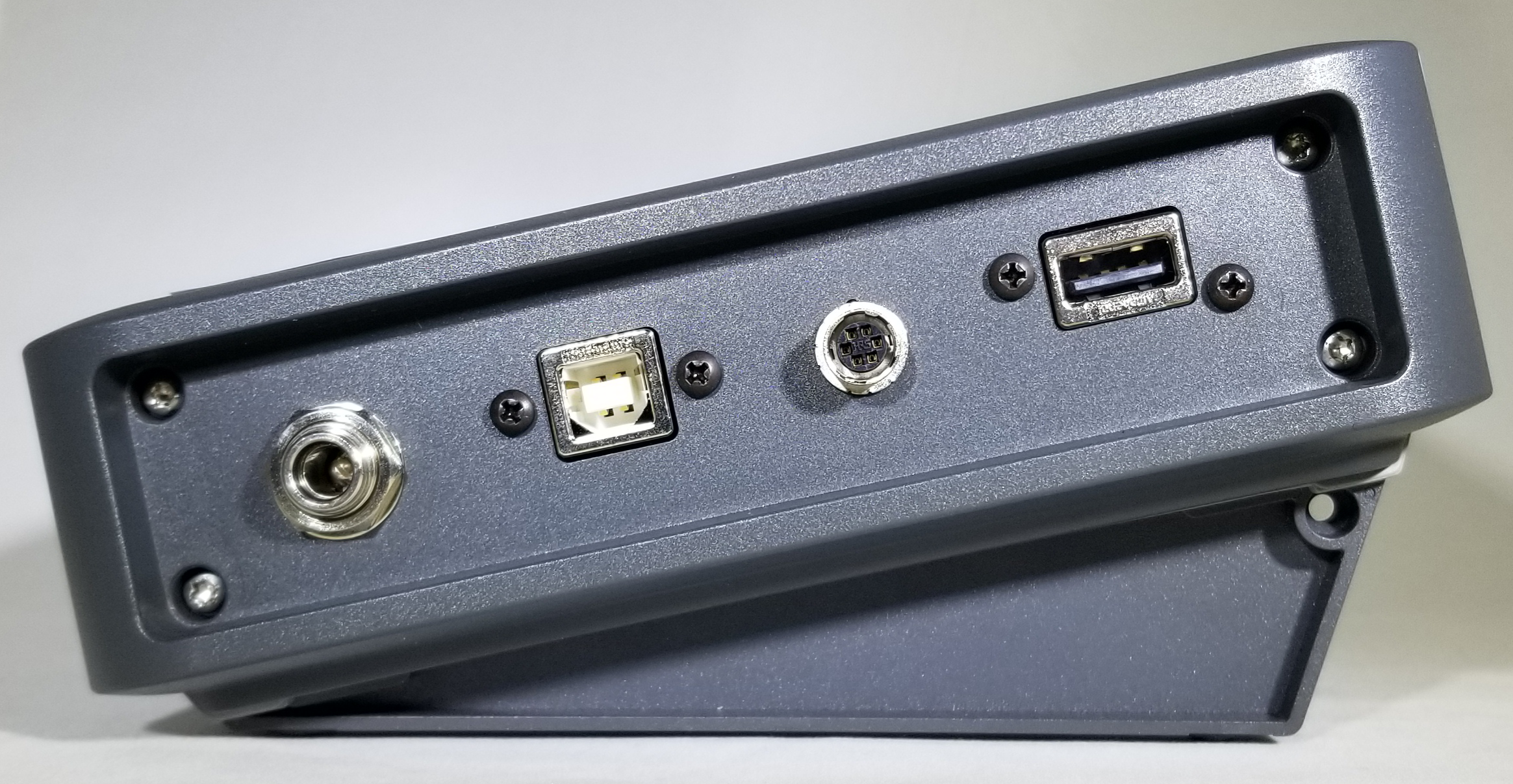

- Outputs: Patient monitor interface-simulated 400 series thermistor, high level analog output (50mV/°C), USB, thumb drive data logging available
- Update rate: 1 sample/second
